So, you’re curious about what actually makes your home’s heating and cooling system tick? It’s not just magic, you know. Your HVAC system is actually a bunch of parts working together, and understanding them can save you some headaches and maybe even some cash. We’re going to break down the main players in your HVAC system components explained, from the furnace that keeps you warm to the ducts that send air all over the place. Let’s get into it.
Key Takeaways
- The furnace heats your air, while the air conditioner cools it. They’re like the yin and yang of your home’s temperature.
- Refrigerant is the stuff that actually moves heat around, making cooling possible.
- Ductwork is like the highway system for your air, getting it from the main unit to every room.
- The thermostat is your remote control for the whole system, telling it when to turn on and off.
- Filters, humidifiers, and dehumidifiers are the supporting cast that keeps your air clean and comfortable.
Understanding The Heart Of Your HVAC System
Think of your HVAC system as the central nervous system for your home’s comfort. It’s not just one thing; it’s a collection of parts working together to keep you cozy in the winter and cool in the summer. Getting a handle on these main components is the first step to understanding how your home stays comfortable year-round.
The Furnace: Your Home’s Warmth Generator
When the temperature drops, your furnace kicks into gear to warm up your house. It’s typically a big metal box, often found in a basement, closet, or attic. The basic idea is simple: it burns fuel (like natural gas, propane, or oil) or uses electricity to heat air. This warm air is then pushed through your home’s ductwork. The efficiency of a furnace can depend on a few things:
- Fuel Type: Natural gas is common and often cost-effective where available.
- Ignition Type: Older furnaces might use a pilot light, while newer ones use electronic ignition, which saves energy.
- AFUE Rating: This stands for Annual Fuel Utilization Efficiency. A higher AFUE percentage means less fuel is wasted as heat out the chimney.
The furnace is the primary source of heat for most homes, directly impacting your comfort during colder months and your energy bills.
The Air Conditioner: Delivering Cool Comfort
On the flip side, your air conditioner is what keeps you from melting when the summer sun is blazing. It works by using a refrigerant to absorb heat from the air inside your home and then moving that heat outside. It’s essentially the opposite of the furnace. The AC unit usually has two main parts: an outdoor unit (the condenser) and an indoor unit (the evaporator coil, often located near the furnace).
- Refrigerant Cycle: This is the magic that makes cooling happen. Refrigerant absorbs heat indoors and releases it outdoors.
- Compressor: This is the part that powers the refrigerant cycle, kind of like the engine of the AC.
- Condenser and Evaporator Coils: These are where the heat exchange actually takes place.
Understanding how your AC works can help you appreciate the technology that keeps your home at a pleasant temperature. For more on how these systems keep you cool, you can check out HVAC systems.
The Heat Exchanger: Bridging Heating And Cooling
The heat exchanger is a really important part, especially in furnaces and some types of air conditioners. Its main job is to transfer heat from one place to another without letting the two things mix. In a furnace, it separates the hot combustion gases from the air that will be blown into your house. In a cooling system, it’s where the refrigerant gives up its heat to the air that will be circulated. It’s a critical component for safe and efficient operation. If it cracks or gets damaged, it can be a serious problem, potentially letting dangerous gases into your home’s air supply.
The Crucial Role Of Refrigerant
What Is Refrigerant And Why Is It Essential?
Think of refrigerant as the lifeblood of your air conditioning and heating system. It’s a special fluid that moves heat around, making your home cooler in the summer and warmer in the winter. Without it, your HVAC system would just be a fancy fan and some metal parts. It’s the stuff that actually absorbs heat from inside your house and dumps it outside when it’s hot, or does the reverse when it’s cold. Pretty neat, right?
How Refrigerant Facilitates Heating And Cooling
The magic happens through a cycle of evaporation and condensation. Inside your home, the refrigerant flows through the evaporator coils. As warm indoor air passes over these coils, the refrigerant absorbs the heat and turns into a gas. This cooled air is then blown back into your rooms. The gaseous refrigerant then travels to the compressor, which squeezes it, increasing its pressure and temperature. Next, it goes to the condenser coils outside, where it releases the absorbed heat into the outdoor air and turns back into a liquid. This liquid refrigerant then heads back inside to start the process all over again.
Here’s a quick rundown of the refrigerant’s journey:
- Evaporation (Indoor): Absorbs heat from your home, turning from liquid to gas.
- Compression: The compressor squeezes the gas, making it hotter and higher pressure.
- Condensation (Outdoor): Releases heat to the outside air, turning from gas back to liquid.
- Expansion: The liquid refrigerant’s pressure drops, preparing it to absorb heat again.
The type of refrigerant used has changed over the years. Older systems might have used R-22, but due to environmental concerns, it’s been phased out. Most modern systems use R-410A, though there’s a push to move towards even more environmentally friendly options with lower global warming potential.
Understanding Different Types Of Refrigerants
Refrigerants aren’t all the same, and the industry is always evolving, mostly to be kinder to the planet. You’ve probably heard of R-410A; it’s been the standard for a while now. Before that, R-22 (often called Freon) was common, but it contained chlorine and was found to be harmful to the ozone layer, so it’s no longer used in new equipment. Now, there’s a big shift happening towards refrigerants with lower Global Warming Potential (GWP). Think of GWP as a measure of how much a greenhouse gas contributes to global warming compared to carbon dioxide.
| Refrigerant Type | Common Use | Environmental Impact (GWP) | Notes |
|---|---|---|---|
| R-22 | Older AC units | High | Phased out due to ozone depletion |
| R-410A | Most current AC units | High | Being phased out due to high GWP |
| R-32 | Newer AC units | Medium | Lower GWP than R-410A |
| R-454B | Newer AC units | Low | A leading alternative for lower GWP |
It’s important to know which refrigerant your system uses, especially if you ever need a repair or recharge. Using the wrong type can damage your system and won’t cool or heat effectively.
Air Distribution: Getting The Conditioned Air To You
So, your furnace or air conditioner has done its job, making the air nice and toasty or refreshingly cool. But how does that perfectly conditioned air actually get to all the rooms in your house? That’s where the air distribution system comes in. Think of it as the circulatory system for your home’s comfort.
Ductwork: The Circulatory System Of Your Home
This is the network of channels, usually made of sheet metal or flexible material, that snakes through your walls, ceilings, and floors. Its main job is to carry the heated or cooled air from your HVAC unit to every corner of your house and then bring the air back to be reconditioned. If your ductwork isn’t sealed up tight, you’re basically letting all that hard-earned conditioned air escape into your attic or crawl space, which is a huge waste of energy and money. It’s like trying to fill a bucket with a hole in it.
Vents: The Entry Points For Comfort
These are the grilles you see on your floors, walls, or ceilings. They’re the final stop for the air before it enters your living space. Supply vents push the conditioned air in, while return vents pull the air back towards the HVAC system to be treated again. The placement and type of vents can actually make a difference in how evenly your home is heated or cooled.
The Blower Motor: Driving Airflow Throughout Your Home
This is the powerhouse behind the whole air distribution process. Located inside your air handler or furnace, the blower motor is responsible for pushing the air through the ductwork and out of the vents. When your thermostat calls for heating or cooling, this motor kicks on, creating the airflow that circulates the conditioned air throughout your home. A strong, properly functioning blower motor is key to getting comfortable temperatures everywhere, not just in the room where the thermostat is located.
The Brains Of The Operation: Control Systems
Think of your HVAC system like a car. It has all these parts working together to get you where you want to go, but you need a steering wheel, pedals, and a dashboard to actually drive it. That’s where the control systems come in. They’re the brains, telling everything else what to do and when to do it.
The Thermostat: Your Command Center
This is probably the part of the control system you interact with the most. It’s your main interface for telling the HVAC system whether you want it warmer or cooler, and when. Older thermostats were pretty basic – you’d set a temperature, and the system would try to hit it. Simple enough.
Modern thermostats, though? They’re a whole different ballgame. Many are now smart devices that connect to your home Wi-Fi. This means you can control your home’s temperature from your phone, even when you’re not home. Some can even learn your habits and adjust automatically to save energy. It’s pretty neat how much these little boxes have evolved. You can find some great options for smart thermostat solutions that can really make a difference in your home’s comfort and energy bills.
Sensors: Monitoring Your Indoor Environment
While the thermostat is the command center, sensors are the eyes and ears of your HVAC system. They’re constantly checking the conditions inside your home. The most common sensor is the one that measures the air temperature, which is what your thermostat uses to decide whether to turn the heating or cooling on or off. But there are other sensors too.
Some systems have sensors that monitor humidity levels. This is important because air that’s too humid can feel warmer than it is, and air that’s too dry can cause all sorts of problems, from static shocks to dry skin. Other sensors might be used to detect things like air pressure or even air quality, though these are less common in standard home systems.
Basically, these sensors feed information back to the control system, allowing it to make informed decisions about how to keep your home comfortable and healthy. Without them, the thermostat would just be guessing.
The interplay between the thermostat and its sensors is what allows your HVAC system to maintain a consistent and comfortable indoor climate. It’s a constant feedback loop: sensors report conditions, the thermostat interprets that data and sends commands, and the system responds. This continuous monitoring and adjustment is key to both comfort and efficiency.
Key Components In The Cooling Process
When the summer heat hits, your air conditioner kicks into gear to keep things comfortable. It’s not magic, though; it’s a carefully orchestrated process involving several key parts working together. Understanding these components can help you appreciate just how your AC manages to make your home a cool oasis.
Evaporator Coils: Absorbing Indoor Heat
Think of the evaporator coils as the part of your AC that actually does the cooling inside your house. These coils are usually found inside your indoor air handler unit. Cold refrigerant flows through them, and as your home’s warm air is blown across these coils, the heat from the air gets absorbed by the refrigerant. This leaves the air cooler, which is then circulated back into your rooms. It’s a pretty neat trick, really.

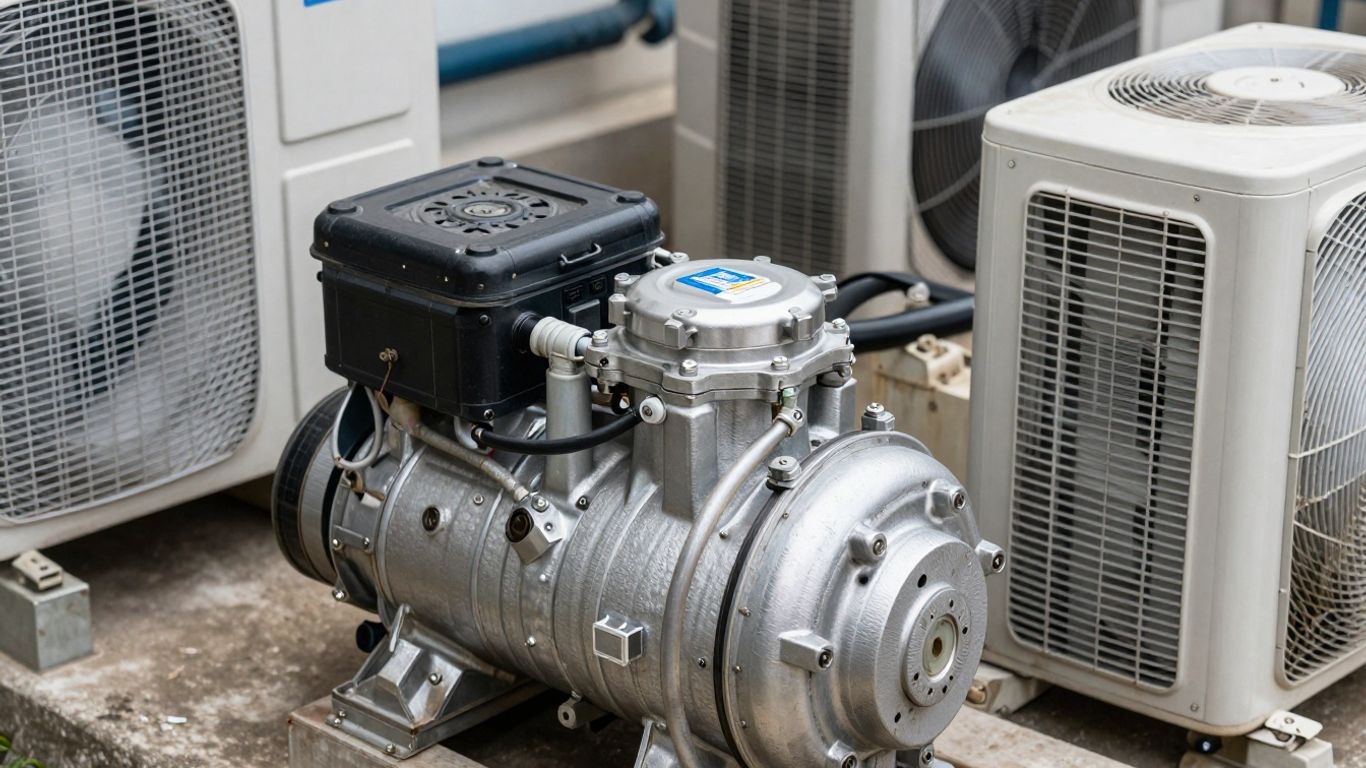

The Compressor: Powering The Refrigerant Cycle
The compressor is often called the "heart" of the air conditioning system, and for good reason. It’s typically located in the outdoor unit. Its main job is to take the refrigerant, which has absorbed heat from inside your home and is now a low-pressure gas, and compress it. This compression turns the refrigerant into a high-pressure, high-temperature gas. This step is vital because it prepares the refrigerant to release the heat it’s carrying.
Condenser Coils: Releasing Heat Outdoors
Once the refrigerant has been compressed and heated up by the compressor, it travels to the condenser coils, which are also part of the outdoor unit. Here, a fan blows outside air over the coils. This airflow helps to transfer the heat from the hot refrigerant to the outside air. As the refrigerant cools down, it changes back into a high-pressure liquid, ready to start the cycle all over again. This is how your AC effectively moves heat from inside your home to the great outdoors. You can learn more about the basic air conditioner components and how they function.
Here’s a quick rundown of how these parts interact:
- Refrigerant Absorption: Cold refrigerant in the evaporator coils soaks up heat from your indoor air.
- Compression: The compressor squeezes the refrigerant, making it hot and ready to release heat.
- Heat Release: The condenser coils allow the hot refrigerant to transfer its heat to the outside air.
- Expansion: The refrigerant then goes through an expansion valve, which lowers its pressure and temperature, making it cold again for the evaporator coils.
The efficiency of your cooling system relies heavily on how well these components work together. If one part isn’t performing optimally, it can affect the entire system’s ability to keep you cool and can even lead to higher energy bills. Regular maintenance is key to keeping these parts in good shape.
Ventilation’s Vital Contribution
So, we’ve talked about heating and cooling, but what about the air itself? That’s where ventilation comes in. Think of it as the lungs of your home’s HVAC system. It’s not just about making the air feel a certain temperature; it’s about keeping the air you breathe fresh and healthy. Without proper ventilation, your indoor air can get stale, leading to all sorts of issues.
How Ventilation Enhances Air Quality
Basically, ventilation is all about air exchange. It’s the process of swapping out the old, used-up air inside your house with fresh air from the outside. This might sound simple, but it does a lot. It helps manage the levels of carbon dioxide (CO2) that we exhale, which can build up and make you feel sluggish. It also tackles odors from cooking, pets, or anything else that might be lingering. Plus, it plays a role in removing tiny particles and even some microorganisms that can float around in the air.
- Removes stale air: Gets rid of that
Essential Supplementary Components
Beyond the big players like your furnace and air conditioner, there are a few other parts that really help keep your HVAC system running smoothly and your home comfortable. Think of these as the supporting cast that makes the whole show work.
Air Filters: Protecting Your System And Your Lungs
This one is super important, and honestly, pretty simple. Your air filter is basically the first line of defense against all the gunk floating around in your air. Dust, pet dander, pollen, and all sorts of tiny particles get trapped here before they can get into your system or, worse, into your lungs. Changing your air filter regularly is one of the easiest and most effective things you can do for your HVAC system’s health and your own well-being. A clogged filter makes your system work way harder than it needs to, which uses more energy and can lead to breakdowns. Plus, cleaner air just feels better.
Here’s a quick rundown on why they matter:
- System Protection: Keeps dust and debris from clogging up sensitive internal parts like coils and fan blades.
- Air Quality: Traps allergens and pollutants, leading to healthier indoor air.
- Efficiency: A clean filter allows for better airflow, so your system doesn’t have to strain.
Humidity Control Devices: Humidifiers And Dehumidifiers
Ever notice how some days feel hotter than they actually are? That’s often humidity at play. Too much moisture in the air can make things feel sticky and uncomfortable, and it can also encourage mold and mildew growth. On the flip side, in drier months, the air can get so dry it irritates your skin, throat, and sinuses. That’s where humidifiers and dehumidifiers come in. These devices work alongside your main HVAC system to keep the moisture levels in your home just right. They’re not always standard, but they can make a huge difference in comfort and health, especially if you have specific needs or live in a region with extreme humidity.
Maintaining the right humidity level, typically between 30% and 50%, is key for both comfort and preventing issues like static electricity, dry skin, and even damage to wooden furniture and musical instruments. It also plays a role in how effectively your heating and cooling systems operate.
These supplementary components are often overlooked, but they play a significant role in the overall performance and your home’s environment. Keeping them in good shape means your main HVAC unit can do its job better and last longer. For more on how different parts affect your system, check out HVAC system components.
How Components Work Together
It’s easy to think of your HVAC system as a bunch of separate parts, but they’re really all working as a team. When one part calls for action, the others jump in to make it happen. It’s like a well-rehearsed play, with each actor knowing their cue.
The Cooling Cycle Explained
When you set your thermostat to cool, it’s like the director yelling "Action!" for the cooling cycle. Here’s a simplified breakdown of what happens:
- Thermostat Signals: Your thermostat detects the indoor temperature is higher than you want it, so it sends a signal to the outdoor unit.
- Compressor Kicks In: The compressor, located in the outdoor unit, starts working. It pressurizes the refrigerant, making it hot and ready to move.
- Condenser Coils Release Heat: This hot refrigerant flows to the condenser coils outside. A fan blows air over these coils, and the heat from the refrigerant transfers to the outside air. Think of it as the system sweating out the heat.
- Refrigerant Cools Down: As the refrigerant loses heat, it cools down and changes into a liquid.
- Evaporator Coils Absorb Heat: This cool liquid refrigerant then travels inside to the evaporator coils. Your indoor fan blows warm, humid air from your house over these cold coils.
- Cool Air Circulates: The refrigerant absorbs the heat and moisture from the air. The now-cooled and dehumidified air is pushed back into your home through the vents. The refrigerant, having picked up heat, turns back into a gas and heads back to the compressor to start the cycle again.
The whole point is to move heat from inside your house to the outside. It’s a continuous loop, and every component has to do its job for it to work right.
The Heating Cycle Explained
Heating is kind of like cooling in reverse, especially if you have a heat pump. If you have a furnace, it’s a bit different, but the goal is the same: get warm air into your house.
For Heat Pumps:
- Thermostat Signals: The thermostat calls for heat.
- Refrigerant Absorbs Outdoor Heat: The outdoor unit’s coils now act like an evaporator. Even when it’s cold outside, there’s still heat energy in the air. The refrigerant absorbs this heat.
- Compressor Works: The compressor pressurizes the refrigerant, making it even hotter.
- Indoor Coils Release Heat: This hot gas travels inside to the evaporator coils (which act as the condenser in heating mode). The indoor fan blows air over these coils, transferring the heat into your home.
- Refrigerant Cools: The refrigerant cools down and heads back outside to pick up more heat.
For Furnaces:
- Thermostat Signals: The thermostat calls for heat.
- Burner Ignites: Inside the furnace, a burner ignites, heating up the air.
- Heat Exchanger Transfers Heat: The heat from the burning fuel passes through a heat exchanger. This metal component gets very hot.
- Blower Circulates Air: The blower motor pulls air from your house, pushes it across the hot heat exchanger, warming it up.
- Warm Air Distributed: This warm air is then sent through your ductwork and out your vents.
Synergy For Optimal Performance
All these parts working together is what makes your HVAC system effective. It’s not just about having good components; it’s about how they interact. For example, a clean air filter means the blower motor doesn’t have to work as hard to push air across the evaporator or furnace coils. Similarly, having the right amount of refrigerant is key for the coils to do their job efficiently. If any part of this chain is weak, the whole system suffers. It’s why regular maintenance is so important; it keeps all these components in sync and ready to go when you need them. Keeping your system running smoothly often comes down to the health of its air filters. They’re small but mighty in their impact on airflow and overall system function.
Impact Of Components On System Efficiency
You know, it’s easy to think of your HVAC system as one big unit, but it’s really a team of parts working together. And just like any team, if one player isn’t pulling their weight, the whole game suffers. This is especially true when it comes to how much energy your system uses and how much it costs you.
How Leaky Ductwork Affects Energy Use
Think of your ductwork like the veins and arteries of your home’s climate control. If those "pipes" have holes or aren’t sealed up tight, all that nice, conditioned air you paid for just escapes into your attic, basement, or crawl space. It’s like trying to fill a bucket with a hole in it – you’re just wasting energy and money.
- Air Loss: Conditioned air leaks out before it even reaches the rooms you want to heat or cool.
- Increased Runtime: Your system has to run longer and harder to compensate for the lost air.
- Higher Bills: All that extra work translates directly into higher energy bills.
Studies show that leaky ductwork can be responsible for losing up to 20% of the air that your system produces. That’s a huge chunk of energy just going to waste.
The Importance Of Proper Refrigerant Charge
Refrigerant is the stuff that makes the magic happen in your AC and heat pump, absorbing heat from inside and dumping it outside (or vice versa). But it’s a delicate balance. Too much or too little refrigerant, and your system just can’t do its job efficiently.
- Undercharged: The system struggles to absorb enough heat, leading to poor cooling performance and the risk of the compressor overheating.
- Overcharged: The system can’t release heat effectively, also reducing efficiency and putting stress on components.
Getting the refrigerant charge just right is key for your system to transfer heat properly. When it’s off, your system works harder, uses more electricity, and doesn’t cool or heat as well as it should.
Airflow Restrictions And Their Consequences
Anything that blocks or slows down the air moving through your system makes it work harder. The most common culprit? A dirty air filter.
- Dirty Air Filters: These are the first line of defense, catching dust and debris. When they get clogged, air can’t pass through easily.
- Blocked Vents: Furniture or curtains blocking vents can also impede airflow.
- Blower Motor Strain: When airflow is restricted, the blower motor has to push harder, using more energy and wearing out faster.
When airflow is poor, your system can’t distribute conditioned air evenly, leading to hot and cold spots. It also means the system runs longer, consuming more energy and potentially shortening its lifespan. It’s a domino effect where one problem leads to another.
The efficiency of your HVAC system isn’t just about the big parts like the furnace or AC unit. It’s the sum of how well all the smaller pieces, like ductwork, filters, and refrigerant levels, are maintained. Neglecting these can lead to significant energy waste and put unnecessary strain on your equipment.
Advanced Components And Future Trends
Smart Thermostats And Their Capabilities
Think of your thermostat as the command center for your home’s climate. While basic thermostats just let you set a temperature, modern smart thermostats are way more sophisticated. They connect to your home Wi-Fi, allowing you to control your HVAC system from your phone, tablet, or computer, no matter where you are. This means you can adjust the temperature before you get home or turn it down if you forget when you leave. Many also learn your habits over time, automatically adjusting the temperature to save energy when you’re typically asleep or away. Some even track your energy usage, giving you insights into how your system is performing and where you might be able to save money.
Technological Innovations Driving Efficiency
The HVAC world is always evolving, with new tech popping up to make systems more efficient and user-friendly. We’re seeing a big push towards systems that use less energy while still keeping you comfortable. This includes things like variable-speed compressors and fans that can adjust their output based on demand, rather than just running full blast. Geothermal systems, which use the stable temperature of the earth to heat and cool, are also gaining traction for their incredible efficiency, though they do have a higher upfront cost. Solar-powered air conditioning is another area of development, aiming to reduce reliance on grid electricity. It’s all about finding smarter ways to manage heating and cooling.
The drive for better efficiency isn’t just about saving money on utility bills; it’s also about reducing our environmental impact. As technology advances, we can expect HVAC systems to become even more integrated with our homes, offering greater control and comfort with less energy consumption.
Here are some of the key areas where innovation is making a difference:
- Variable-Speed Technology: Instead of just on/off, these components can fine-tune their operation, leading to smoother temperature control and significant energy savings.
- Zoning Systems: These allow you to control the temperature in different areas of your home independently, so you’re not heating or cooling rooms that aren’t in use.
- Improved Air Quality Features: Beyond just temperature, new systems are incorporating better filtration and ventilation strategies to keep your indoor air cleaner and healthier.
- Integration with Smart Home Ecosystems: Future systems will likely work even more closely with other smart devices in your home for a truly connected experience. You can explore advancements in HVAC technology to see what’s on the horizon.
Wrapping It Up
So, we’ve gone through all the bits and pieces that make up your home’s heating and cooling system. It might seem like a lot, but knowing what each part does, from the big stuff like the furnace and AC unit to the smaller things like the thermostat and ductwork, really helps. It’s not about becoming an HVAC expert overnight, but just having a general idea can make a difference when it comes to keeping things running smoothly. Paying attention to your system and doing some basic maintenance can save you headaches and money down the road. If something seems off, don’t hesitate to call in a pro. They know their stuff and can get you back to being comfortable in no time.
Frequently Asked Questions
What does HVAC stand for, and what does it do?
HVAC is short for Heating, Ventilation, and Air Conditioning. It’s the system in your home that controls the temperature, keeps the air fresh, and makes sure your home is comfortable all year round, whether it’s hot or cold outside.
What is the main job of the furnace and the air conditioner?
The furnace is like your home’s heater; it warms up the air when it’s cold. The air conditioner is the opposite; it cools down the air when it’s hot, making your home feel nice and chilly.
What is refrigerant and why is it important?
Refrigerant is a special fluid that makes air conditioners work. It’s like a heat mover. It picks up heat from inside your house and moves it outside to make your home cool. In the winter, some systems can even do the reverse to bring heat inside.
What are evaporator coils and condenser coils?
Think of evaporator coils as the part inside that gets cold and absorbs heat from your house’s air. The condenser coils are usually outside and release that absorbed heat into the outside air. They are key players in the cooling process.
What is ductwork and what is its purpose?
Ductwork is like the network of tunnels or pipes that carry the heated or cooled air from your HVAC system to all the different rooms in your house. Without it, the air wouldn’t go anywhere!
What does the blower motor do?
The blower motor is the powerhouse that pushes the air through the ductwork. When your thermostat says it’s time for heating or cooling, this motor gets the air moving so you can feel the difference.
Why are air filters important in an HVAC system?
Air filters are like the lungs of your HVAC system. They catch dust, dirt, pet hair, and other tiny particles floating in the air. This keeps your system cleaner, helps it run better, and makes the air you breathe healthier.
Can small problems with HVAC parts really affect my energy bill?
Absolutely! Even small issues, like a leaky duct or not enough refrigerant, can make your system work much harder than it needs to. This wasted effort means higher energy bills and can even shorten the life of your equipment.
